Dahua

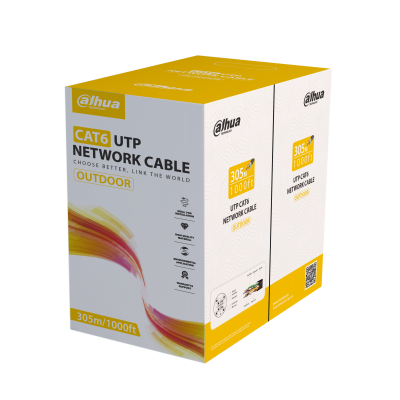

Dahua DH-PFM920-6U 305m Outdoor CAT6 U/UTP cable(99.97% Copper)
KSh 18,000
This is a professional outdoor CAT6 cable designed for reliable Ethernet and CCTV installations. Its high-purity oxygen-free copper conductor and outdoor MDPE sheath make it suitable for demanding structured cabling environments.
Key Features
- 305m length
- CAT6 U/UTP
- 99.97% purity oxygen-free copper
- 23AWG conductor
- Outdoor MDPE sheath
- PoE compatible
- Black colour
- 10-year warranty listed by Dahua
- Suitable for CCTV and networking
SKU: NW-DAH-003
Specifications
| Material | Polyester tape (transparent) |
|---|---|
| Conductor Structure | 0.57 mm ± 0.02 mm (0.0224" ± 0.0008") |
| American Wire Gauge | 23AWG |
| Insulating Material | HDPE |
| Min. Average Thickness | 0.7 mm (0.0276") |
| Insulation Diameter | 1.02 mm ± 0.06 mm (0.04" ± 0.0024") |
| Insulation Color | 8 cores, Blue, white/blue; Orange, white/orange; Green, white/green; Brown, white/brown |
| Rip Cord Material | Polyester |
| Rip Cord Specification | 500D |
| Separator Material | PE |
| Specification Translucent | 4.5 mm × 0.4 mm (0.18" × 0.0157") |
| Thickness | W: 20 mm ± 2 mm × T: 0.026 mm ± 0.02 mm (W: 0.79" ± 0.08" × T: 0.0010" ± 0.0008") |
| Sheath Material | MDPE |
| Sheath Diameter | 6.2 mm ± 0.4 mm (0.24" ± 0.0157") |
| Sheath Color | Black |
| Max. DC Resistance of a Single Conductor | 7.35 Ω@100 m (328.08 ft) |
| Min. Insulation Resistance | 5000 MΩ·km |
| Max. DC Resistance Unbalance | 2% (pair intra), 4% (pairs inter) |
| Dielectric Strength | No breakdown with 1kV DC for 1 min |
| Characteristic Impedance | 100 Ω ± 15 Ω |
| Near-end Crosstalk | ≥39.3 dB/100 m@250 MHz |
| Max. Attenuation | 32.8 dB/100 m@250 MHz |
| Return Loss | ≥17.3 dB/100 m@250 MHz |
| Tensile Strength Sheath | ≥13.5 MPa, insulation≥16 Mpa |
| Elongation at Break Sheath | ≥150%, insulation≥300% |
| Installation Bending Radius | >15 times of outer cable diameter |
| Conductor Elongation at Break | ≥15% |
| Shrinkage of Insulation | ≤5% |
| Color Migration Resistance of Insulation | No migration |
| Sheath Tensile Strength and Elongation at Break after Aging | ≥9.6 MPa, rate of change≤20% |
| Low Temperature Bending Test | No cracking after the test |
| Heat Shock Test | No cracking after the test |
| Operating Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Installation Temperature | 0 °C to +50 °C (+32 °F to +122 °F) |
| Storage Temperature | –10 °C to +40 °C (+14 °F to +104 °F) |
| Storage Humidity | <60% (RH) |
| Cable Length | 305.0 m± 2 m (1,000.66 ft ± 6.56 ft) |
| Packaging Method | 305 m (1,000 ft) a carton, one carton with 2 inner cartons |
| Packaging Dimensions | 436 mm × 436 mm × 222 mm (17.17" × 17.17" × 8.74") (L × W × H) |
| Dimensions | 470 mm × 470 mm × 470 mm (18.50" × 18.50" × 18.50")(L × W × H) |
| Net Weight | 11.7 kg ± 0.6 kg (25.79 lb ± 1.32 lb) |
| Gross Weight | 12.7 kg ± 0.6 kg (28.00 lb ± 1.32 lb) |
| Compliance Standard | YD/T 3296.2-2018,NSI/TIA 568.2-D |
Related Products
D-Link

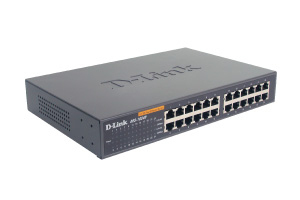

D-Link DES-1024D 24-Port Desktop
KSh 7,000
General

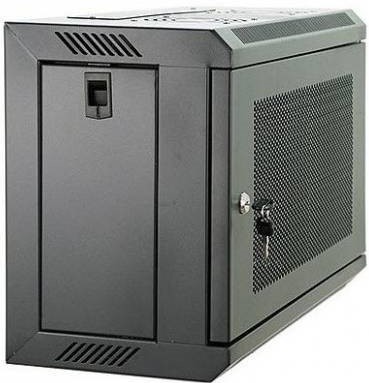

Generic Durable 4U Cabinet 600 x 450
KSh 6,000

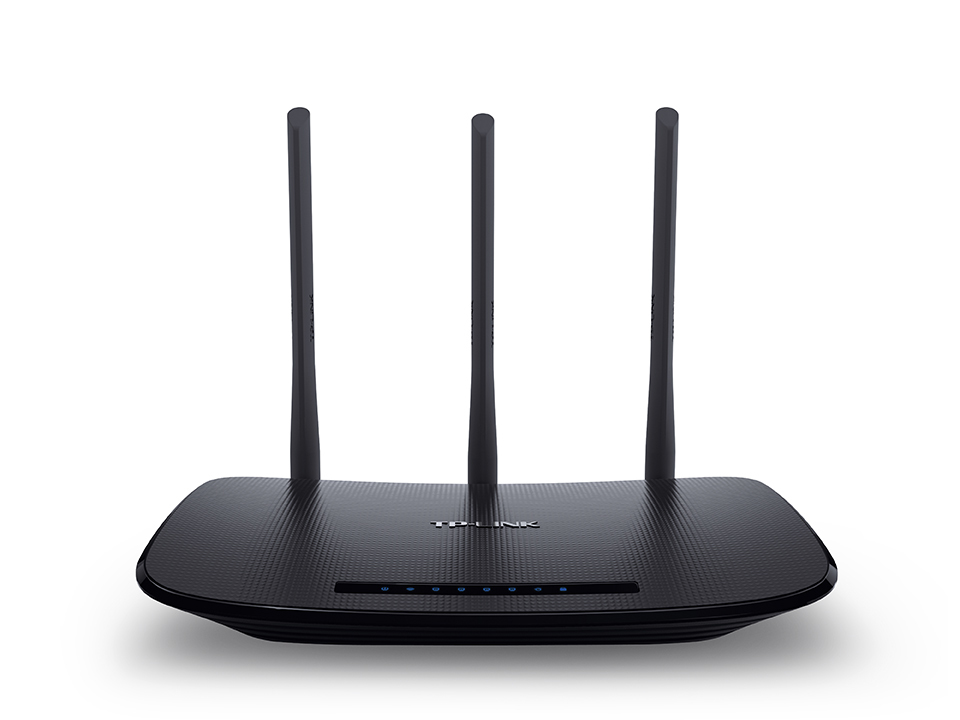

TP-Link
